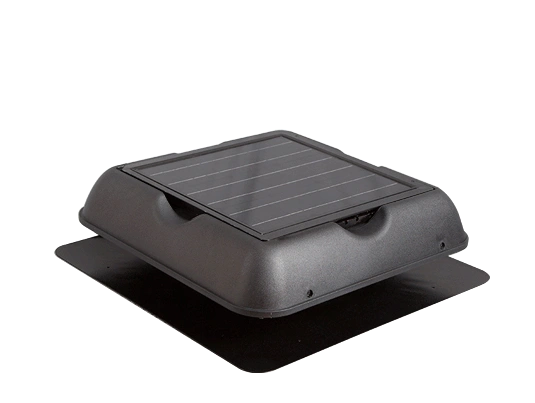

Solar Attic Fan

 The solar attic fans reduce temperatures inside enclosed spaces throughout the year, like your attic space, crawl spaces, warehouses, storage areas, sheds, barns, etc. In the summer, our solar powered attic fans help make all these areas more comfortable by converting passive ventilation to active. Thus reduces HVAC costs and cooling cycles, which also saves energy and money. Solar powered attic fans help reduce hot air in your attic space. Attic heat can cause the premature deterioration of shingles, roof boards, sheathing, siding, insulation and stored valuables.


Benefits of Solar Attic Ventilation Fans



  • Texas Windstorm Certified & Tested (ASTM-E330
  • Converts passive ventilation to active.
  • Includes thermostat & FireFuse.
  • Extends the life of your roof and AC.
  • Reduces moisture which reduces mold & mildew.
  • Increases air exchanges (per hour).
  • Reduces HVAC costs & cooling cycles.
  • Lifetime warranty available.
  • Qualifies 30% Federal Credit program (unit & installation)
  • Extreme Weather Ready:


Warranty and Tax Credit



  • 30% Federal Tax Credit (limited time)


  • Lifetime Warranty Upgrade: *Limited lifetime warranty service package


  • Residential & Commercial 15 yr *Motor, solar and housing




Product Specifications



  • Motor: Brushless 6-24VDC, proprietary, high-performance, direct current (DC) motor.
  • Fan Blade: 12-inch/5-blade ‘TurboProp’ styled custom nylon/polymetric blade.
  • Performance:
  • 30 Watt: Up to 2250 sq.ft and ventilation capacity up to 1700 CFMs, also with sones ≈ .5 – 3.0.
  • 55 Watt: Up to 2650 sq.ft and ventilation capacity up to2100 CFMs, also with sones ≈ .5 – 3.5                                      Housing:
  • Upper: automotive grade ABS, high impact composite material, and UV stabilizer with embedded fire retardant resin in addition to a wildlife guard.
  • Base: System double-locks into upper housing and also has a heavy-duty solid one-piece aluminum (A6016) base for easier installation.
  • Unit Dimensions: 24″ x 24″ x 7″
  • Weight: 26 Lbs
  • Box Size: 28″ x 28″ x 11″, Box Weight: 30 Lbs

Solar Attic Fan Options
